Ultra Pro Top Fuel Nitro Harley Products

Over the years Ultra Pro Machining has built a reputation for itself as being the class of the field when it comes to top end components for Top Fuel Harleys. With hundreds of wins through the years an entire wall dedicated to autographed photographs from happy riders tells the story of this legacy. Over 90% of the Top Fuel riders rely on Ultra Pro Machining 5-axis billet cylinder heads. We offer the very same race winning components seen on their bikes to you!! From complete, assembled, ready to run packages to individual components, Ultra Pro Machining has it all.

Cylinder Heads Complete Set

Bare Cylinder Head (No Valves or Valvetrain Kit)

Part # Description Price

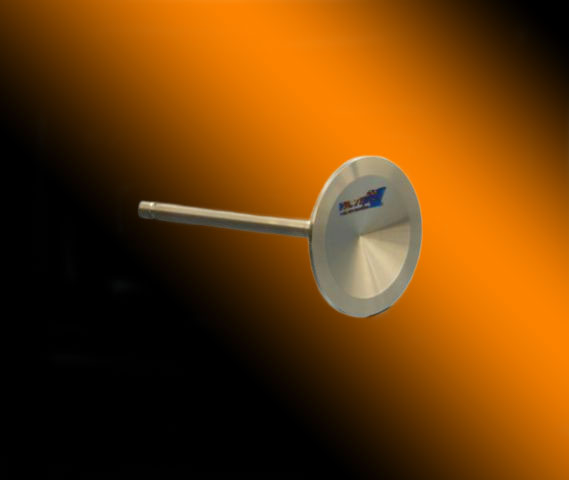

Intake Valve 2.300" Titanium $137.00
Intake Valve 2.400" Titanium $137.00
Intake Valve 2.500" Titanium $137.00

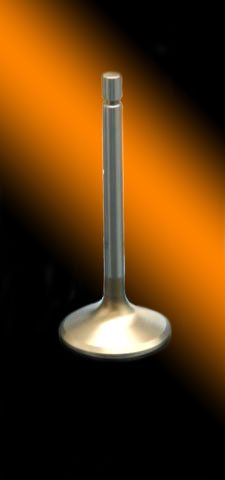

Exhaust Valve 1.950" Inconel $95.00
Exhaust Valve 2.000" Inconel $95.00

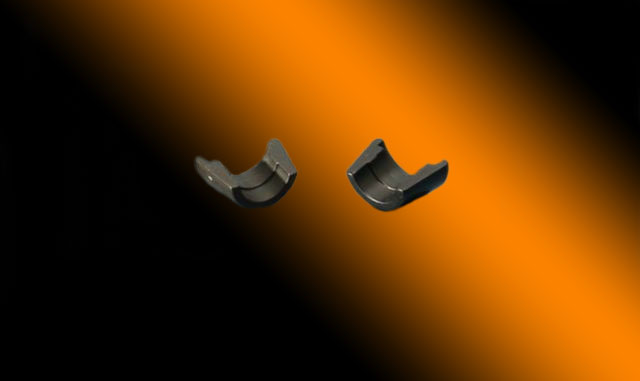

Valve Locks (1 Pair)   $6.00

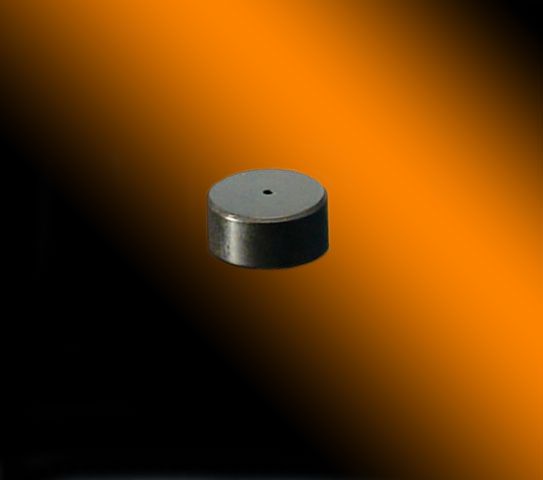

Lash Cap   $6.00

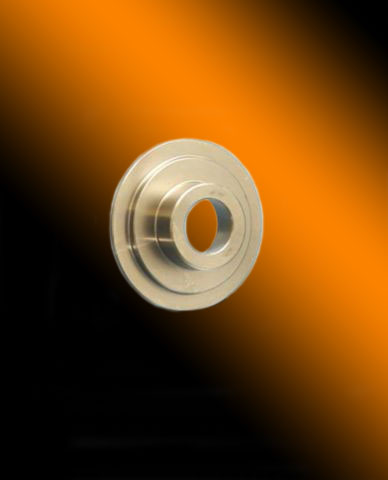

Titanium Retainer (Upper Collar)   $24.00

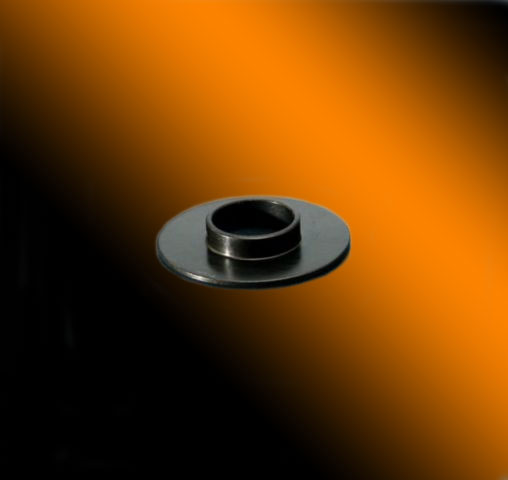

Spring Seat (Lower Collar)   $6.00
Intake Guides   $21.00
Exhaust Guides   $21.00

Individual Parts

Part # Description Price
Rocker Box Top Standard $150.00
Rocker Box Top Tall +0.500" $150.00
Rocker Box Bottom   $150.00
Rocker Stands (Spring Side) Standard Location and Height $75.00
Rocker Stands (Spring Side) 0.060 Out Standard Height $75.00
Rocker Stands (Spring Side) 0.060 Out Standard Height w/ Steel Bushings $75.00
Rocker Stands (Spring Side) 0.060 Out Tall +0.500" $75.00
Rocker Stands (Spring Side) S&S Rocker Stand $93.75
Rocker Stands (Push Rod Side) Standard Location and Height $75.00
Rocker Stands (Push Rod Side) 0.060 Out Standard Height $75.00
Rocker Stands (Push Rod Side) 0.060 Out Standard Height w/ Steel Bushings $75.00
Rocker Stands (Push Rod Side) 0.060 Out Tall +0.500" $75.00
Rocker Stands (Push Rod Side) S&S Rocker Stand $93.75

Individual Pricing

Complete Set Pricing

Part # Description Price
Rocker Boxes Standard $600.00
Rocker Boxes Tall +0.500" $600.00
Rocker Stands Standard Location and Height $300.00
Rocker Stands 0.060 Out Standard Height $300.00
Rocker Stands 0.060 Out Standard Height w/ Steel Bushings $300.00
Rocker Stands 0.060 Out Tall +.500" $300.00
Rocker Stands S&S Rocker Stands $375.00

Manifolds

Part # Description Price
UPM-SIMM Single Injector Aluminum Sheet Metal Manifold $1100.00
UPM-DIMS45 45 Degree Dual Injector Steel Sheet Metal Manifold (Set) $1100.00
UPM-DIMS60 60 Degree Dual Injector Steel Sheet Metal Manifold (Set) $1100.00
UPM-DIMF45 45 Degree Dual Injector Steel Sheet Metal Manifold (Front) $650.00
UPM-DIMF60 60 Degree Dual Injector Steel Sheet Metal Manifold (Front) $650.00
UPM-DIMR45 45 Degree Dual Injector Steel Sheet Metal Manifold (Rear) $650.00
UPM-DIMR60 60 Degree Dual Injector Steel Sheet Metal Manifold (Rear) $650.00
Part # Description Price

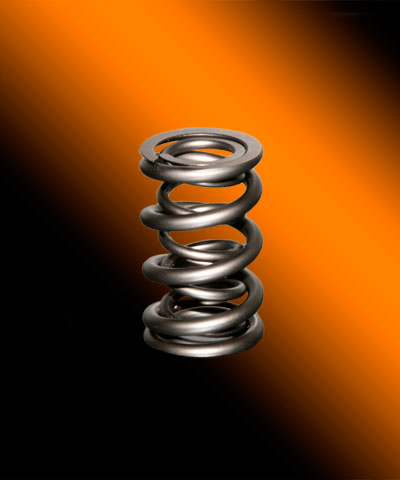

UPF-100 1 Complete Head (4.375" Bore), 2.300" Intake Valve, 1.950" Exhaust Valve. Also Includes 1 Intake Valve, 1 Exhaust Valve, 2 Valve Springs, 2 Spring Seats (Lower Collar), 2 Titanium Retainers (Upper Collar), 2 Pair Valve Locks, 2 Lash Caps
****** Not Assembled ******
$2850.00
UPF-0.050" 1 Complete Head (4.600" Bore), 2.400" Intake Valve, 2.000" Exhaust Valve. Also Includes 1 Intake Valve, 1 Exhaust Valve, 2 Valve Springs, 2 Spring Seats (Lower Collar), 2 Titanium Retainers (Upper Collar), 2 Pair Valve Locks, 2 Lash Caps
****** Not Assembled ******
$2850.00
UPF-FULL 1 Complete Head (4.750" Bore), 2.500" Intake Valve, 2.000" Exhaust Valve. Also Includes 1 Intake Valve, 1 Exhaust Valve, 2 Valve Springs, 2 Spring Seats (Lower Collar), 2 Titanium Retainers (Upper Collar), 2 Pair Valve Locks, 2 Lash Caps
****** Not Assembled ******
$2850.00
UPF-FULL5.0 1 Complete Head (5.000" Bore), 2.500" Intake Valve, 2.000" Exhaust Valve. Also Includes 1 Intake Valve, 1 Exhaust Valve, 2 Valve Springs, 2 Spring Seats (Lower Collar), 2 Titanium Retainers (Upper Collar), 2 Pair Valve Locks, 2 Lash Caps
****** Not Assembled ******
$2850.00
Part # Description Price
UPF-100 4.375" Bore (2 Heads) $4400.00
UPF-0.050" 4.600" Bore (2 Heads) $4400.00
UPF-FULL 4.750" Bore (2 Heads) $4400.00
UPF-FULL5.0 5.000" Bore (2 Heads) $4400.00
UPF-100 4.375" Bore (1 Head) $4400.00
UPF-0.050" 4.600" Bore (1 Head) $4400.00
UPF-FULL 4.750" Bore (1 Head) $4400.00
UPF-FULL5.0 5.000" Bore (1 Head) $4400.00

Individual Cylinder Head Packages

Part # Description Price
UPF-100 2 Complete Heads (4.375" Bore), 2.300" Intake Valve, 1.950" Exhaust Valve. Also Includes 2 Intake Valves, 2 Exhaust Valves, 4 Valve Springs, 4 Spring Seats (Lower Collar), 4 Titanium Retainers (Upper Collar), 4 Pair Valve Locks, 4 Lash Caps
****** Not Assembled ******
$5000.00
UPF-0.050" 2 Complete Heads (4.600" Bore), 2.400" Intake Valve, 2.000" Exhaust Valve. Also Includes 2 Intake Valves, 2 Exhaust Valves, 4 Valve Springs, 4 Spring Seats (Lower Collar), 4 Titanium Retainers (Upper Collar), 4 Pair Valve Locks, 4 Lash Caps
****** Not Assembled ******
$5000.00
UPF-FULL 2 Complete Heads (4.750" Bore), 2.500" Intake Valve, 2.000" Exhaust Valve. Also Includes 2 Intake Valves, 2 Exhaust Valves, 4 Valve Springs, 4 Spring Seats (Lower Collar), 4 Titanium Retainers (Upper Collar), 4 Pair Valve Locks, 4 Lash Caps
****** Not Assembled ******
$5000.00
UPF-FULL5.0 2 Complete Heads (5.000" Bore), 2.500" Intake Valve, 2.000" Exhaust Valve. Also Includes 2 Intake Valves, 2 Exhaust Valves, 4 Valve Springs, 4 Spring Seats (Lower Collar), 4 Titanium Retainers (Upper Collar), 4 Pair Valve Locks, 4 Lash Caps
****** Not Assembled ******
$5000.00

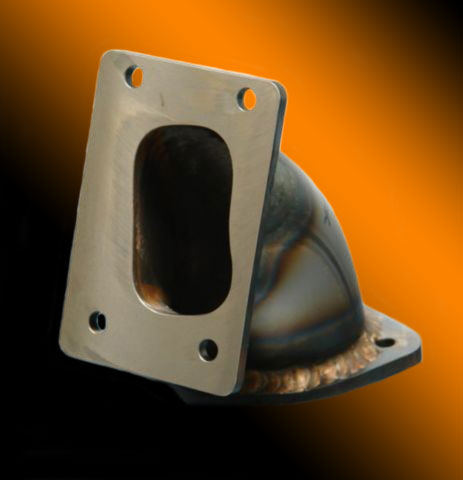

Manifolds

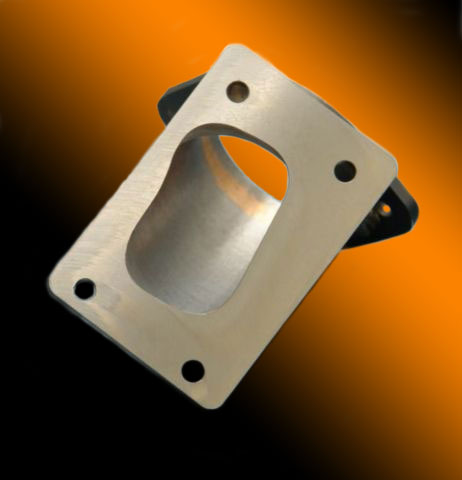

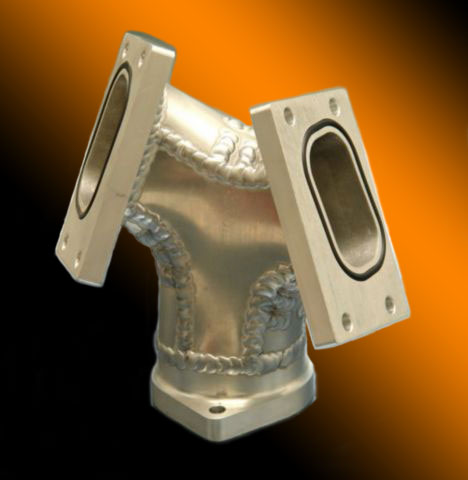

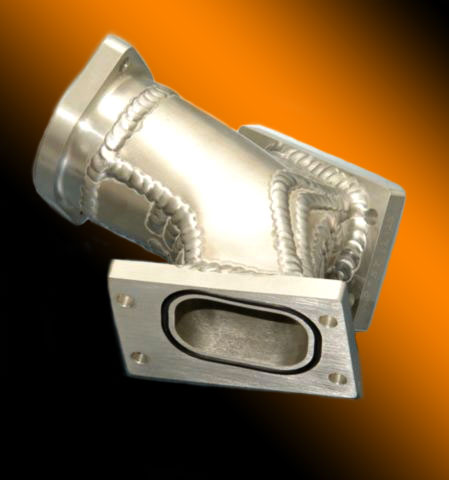

Ultra Pro Machining offers two styles of manifolds that are precisely matched to the intake ports of our heads by CNC machining the flanges to the manifold face of the head. Our dual injector manifold is fabricated from steel for strength, it is the ultimate in manifolds giving the engine equal mixture distribution to both cylinders. You will need two for a complete engine. Our single injector is made from aluminum is very light, is simpler to setup, and more economical.

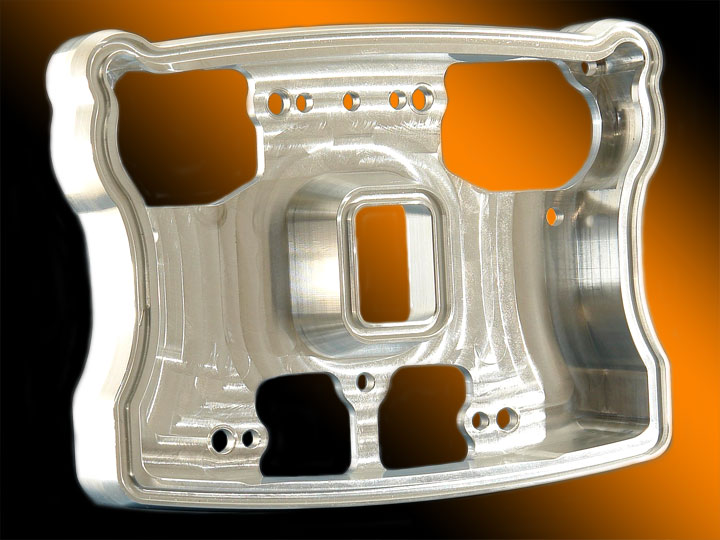

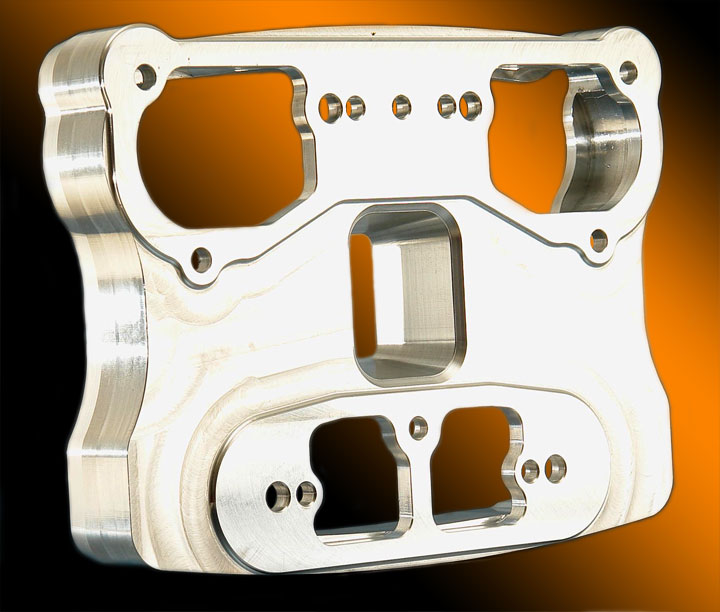

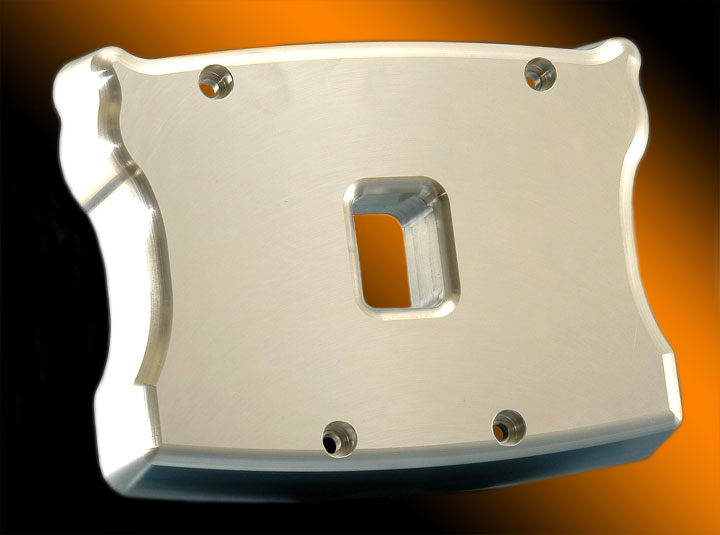

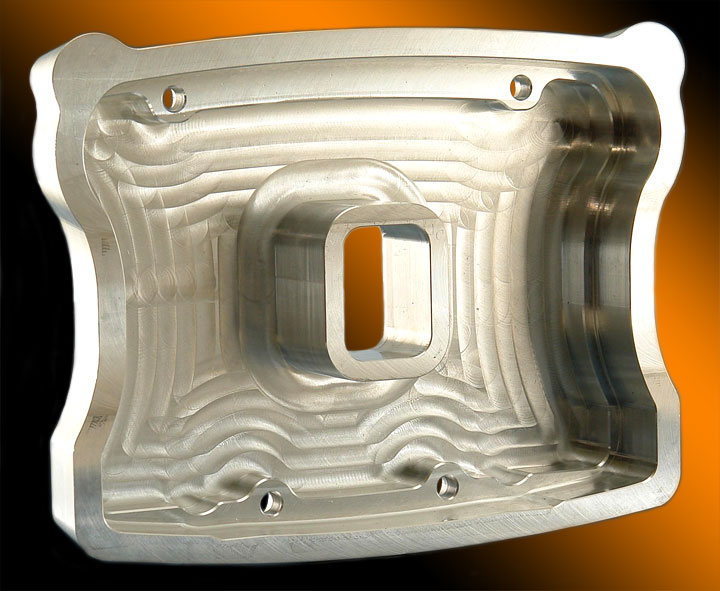

Billet Rocker Boxes

Our Rocker Boxes are CNC machined from billet 6061-T6 aircraft aluminum. They are designed for use with our heads and
rocker stands. The top cover has been counter bored to hide the bolts. Together with our heads they look as fast as they go!!

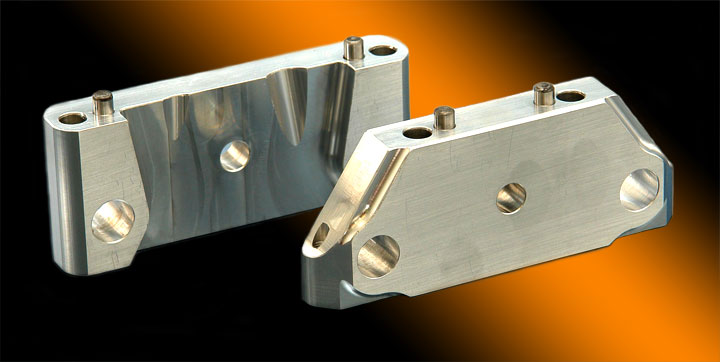

Billet Rocker Stands

Our rocker stands our manufactured from billet 6061-T6 aircraft aluminum. They have steel dowel pins already installed, which is important for proper alignment with the rocker arms to prevent binding. The pushrod clearances have already been machined into the stands for your convenience.

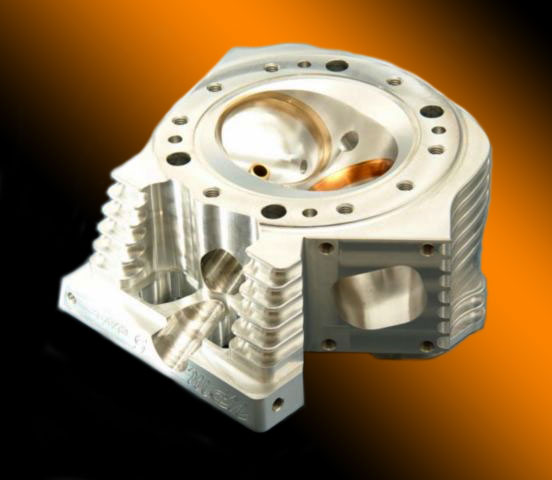

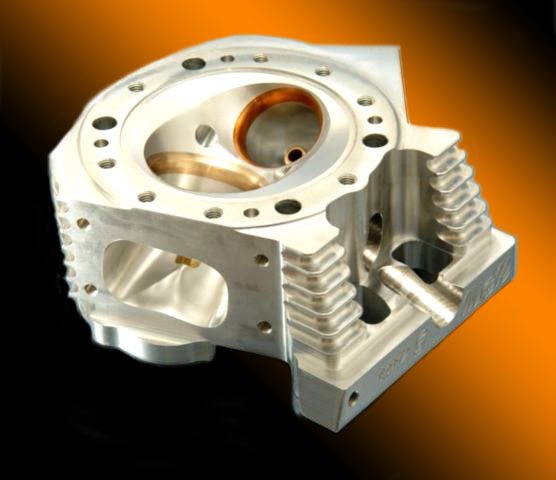

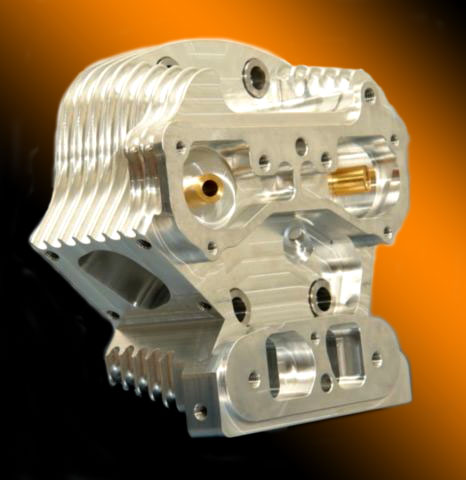

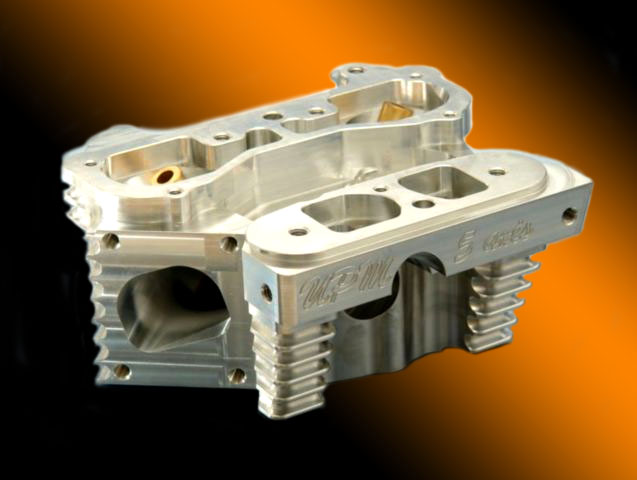

Cylinder Heads

The current design is a highly engineered product resulting from years of testing, racing, and winning. Our Top Fuel Harley cylinder heads are manufactured completely in house. They start from a proprietary raw billet extrusion and are then meticulously machined on three of our CNC machining centers dedicated to this job. Next we install our in house bronze guides and beryllium valve seats. All our finish seat profiles are manually cut on a Serdi machine with specialty fixturing, this insures perfect concentricity, which translates to a tight seal and more horsepower. Finally some delicate hand blending extracts peak performance from the cylinder head. There is somewhat of a symbiotic relationship between the valve and seat so included with your heads is a set of custom ground valves that finish the package. The intake valve is made from titanium alloy. The exhaust valve is also is made from a high temperature nickel steel alloy commonly known as Inconel.
